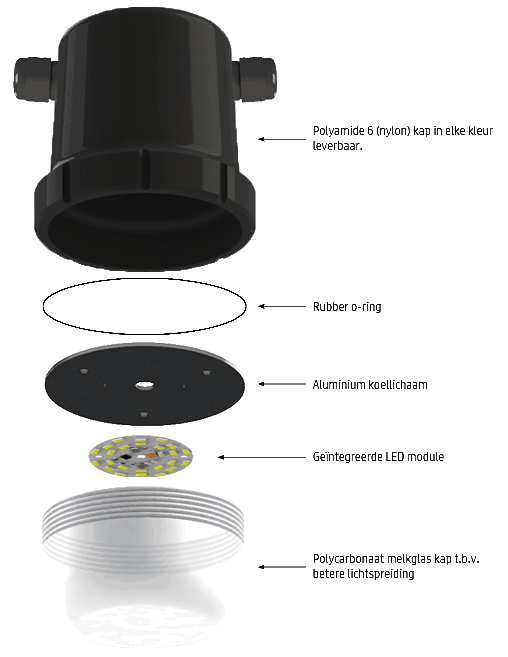

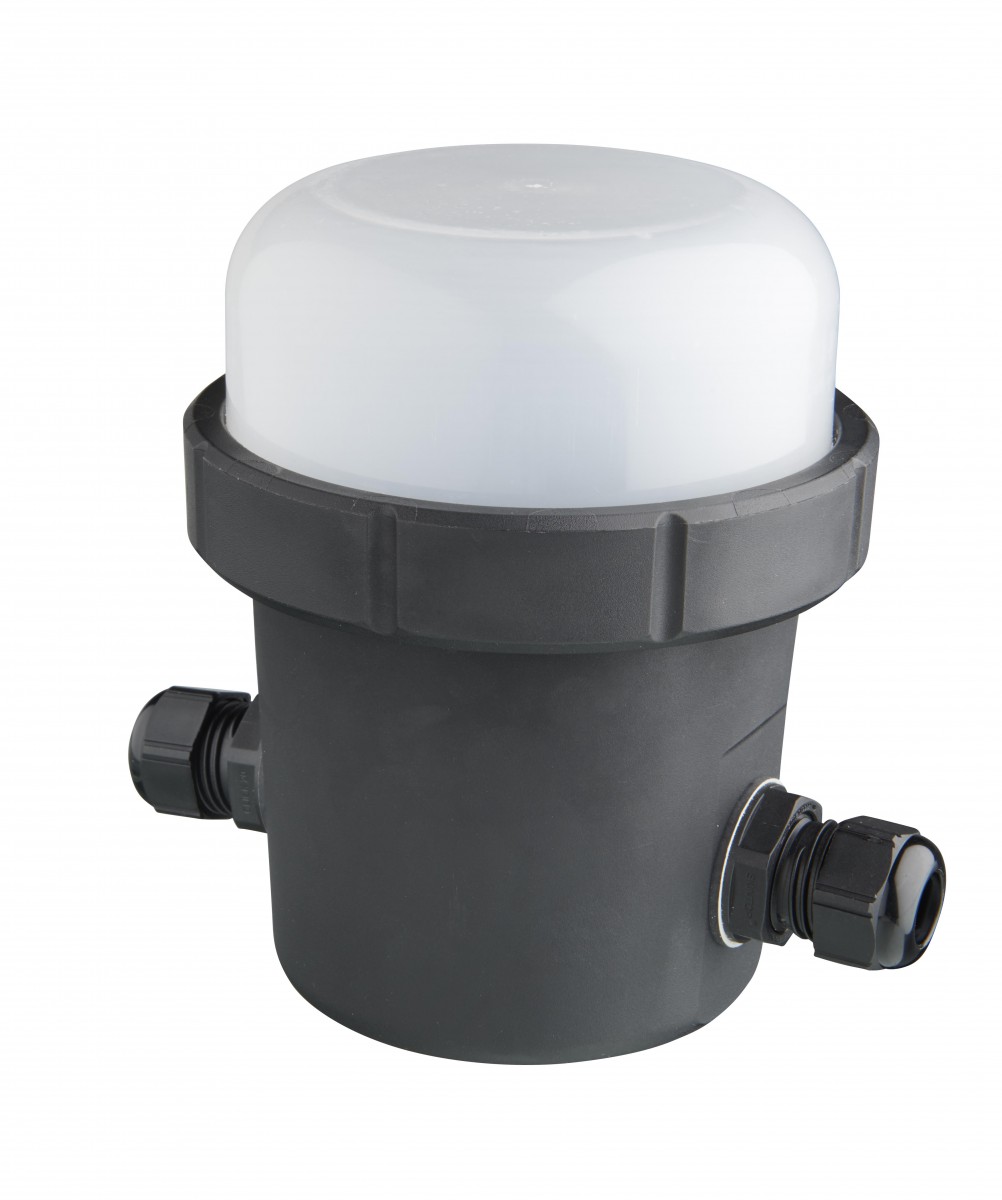

Madelon LED luminaire is provided with an integrated LED plate, so no loose fitting and light sources are needed. can be used with one or two cable glands or with a special connector as IPC chain lighting. Thus daisy chain connection, but can also be used as a hand lamp, whether or not with a magnet. Madelon type is available in almost every color and every operating Voltage.

General Details
•Stringlight
Double insulated 230 Volt Class II
24 VAC 42VAC 110VDC Class III
Lifetime 30000 uur
Colortemperature 4000 k
Lumen output 12W= 1220 Lm
Light output 360°
Power 42VAC: 12 Watt / 230 Volt: 12 Watt
Operational source 230 V/AC 42 V/AC / 110V/DC
Cable gland M20
Power Factor 0.8
CRI_Ra 80
Frequentie 50Hz/60Hz
operating temperature -30C +50C
• PRODUCT INFORMATION
Articlenumber 230 V/AC 12W 1 Gland M20 1402123012
Articlenumber 230V/AC 12W 2 Glands M20 1402223012
Articelnumber 110 V/DC 12 W 1 Gland M20  1402111012
Articlenumber 110 V/DC 12 W 2 Gland M20  1402211012
Articlenumber  42 V/AC   12 W 1 Gland M20  140214207
Articlenumber  42 V/AC  12 W 2 Gland M20  140224207
Articlenumber  24 V/AC   12 W 1 Gland M20  140212412
Articlenumber  24 V/AC  12 W 2 Gland M20  140222412

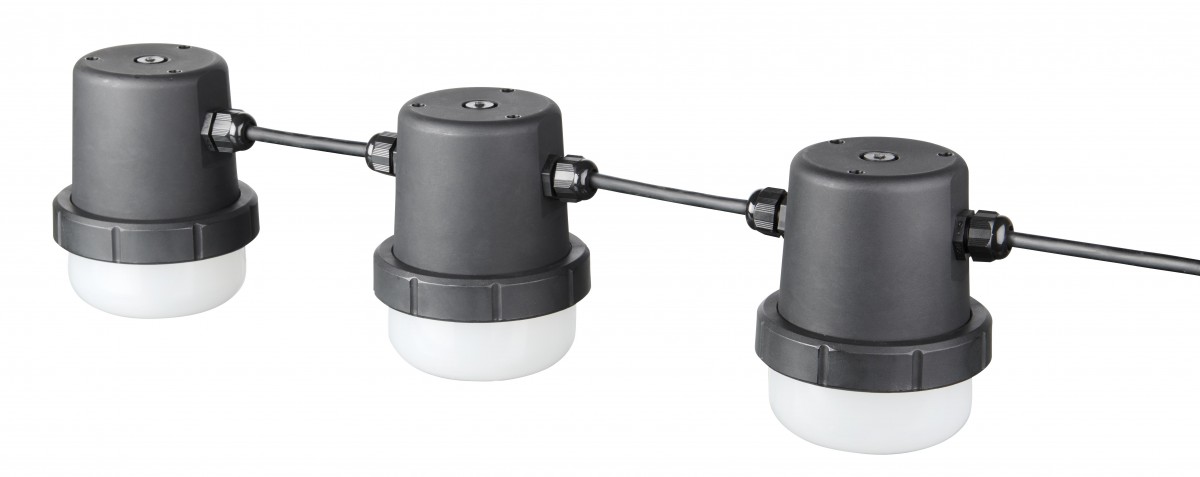

Art.nr. 3 st. stringlight with 10mtr. cable 230V/AC 36W N1031402230
Art.nr. 3 st. stringlight with 10mtr. cable 42 V/AC 36W N1031402042
Art.nr. 3 st. stringlight with 10mtr. cable 110 V/DC 36W N1031402110
Art.nr. 5 st. stringlight with 25 mtr. cable 230V/AC 60W N2551402230
Art.nr. 5 st. stringlight with 25 mtr. cable  42 V/AC 60W N2551402042
Art.nr. 5 st. stringlight with 25 mtr. cable 110 V/DC 60W N2551402110
Art.nr. 5 st.stringlight with 45 mtr cable 230V/AC linkable N4551402230
Product name LED fixture typ Madelon
Protection IP65
Weight 150 gram
Resistance IK10
•Measurements
Hight 155 mm
Diameter 125 mm

Choose your color:

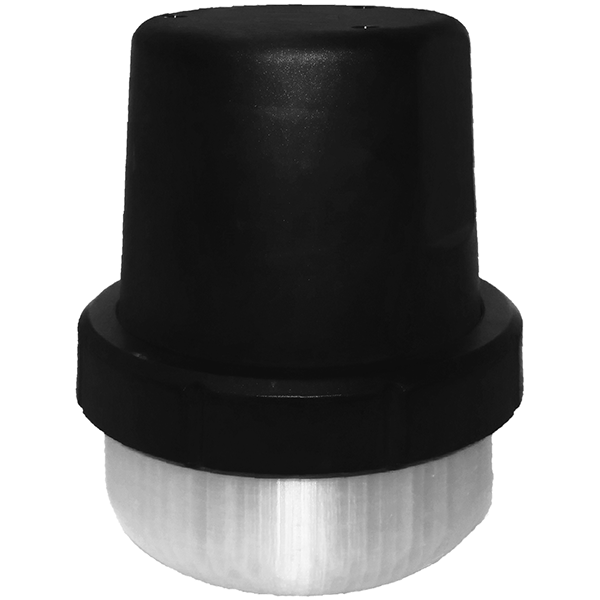

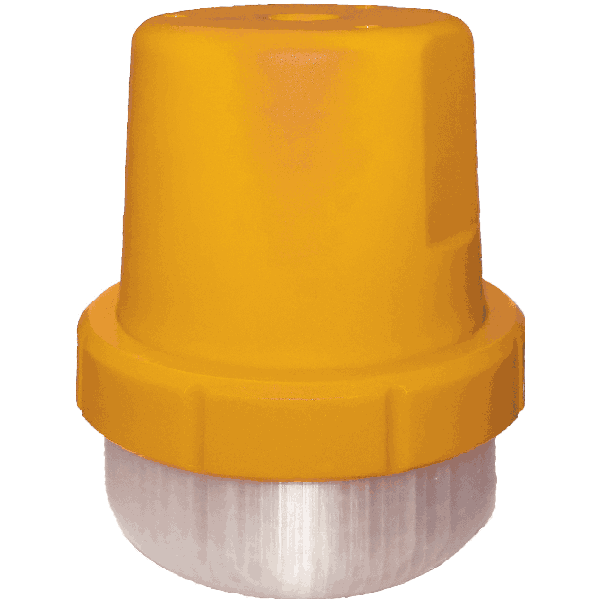

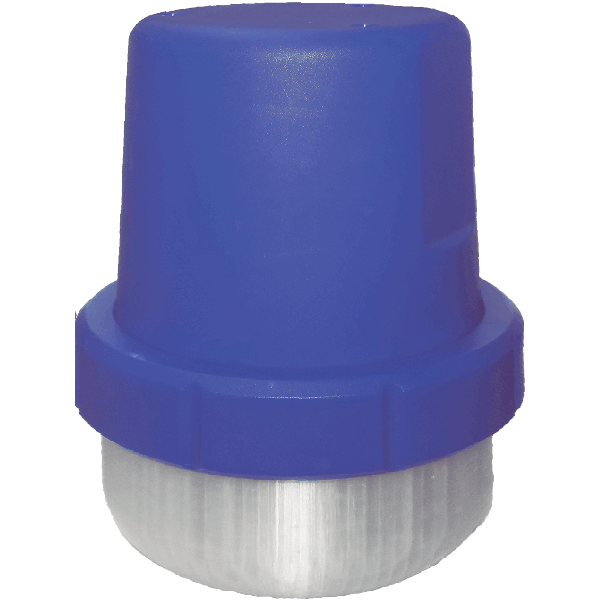

madelon-zwart-maxibelmadelon-blauw-maxibelmadelon-geel-maxibel

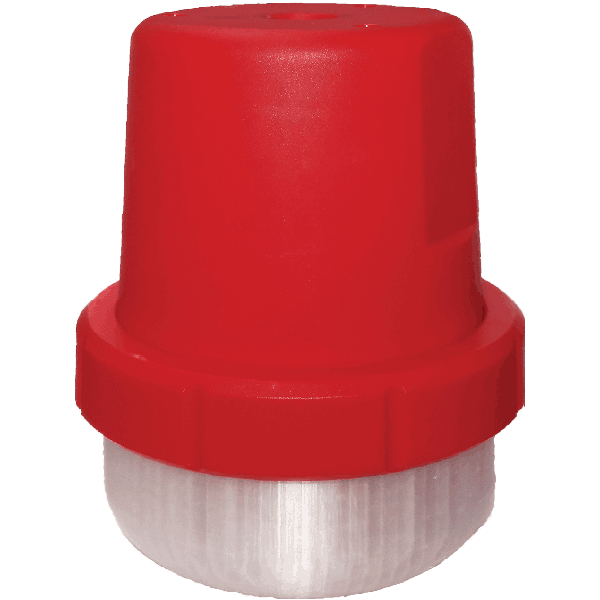

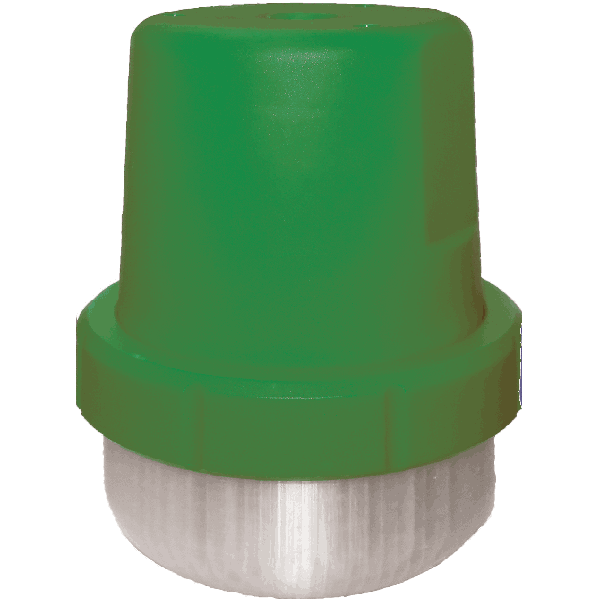

madelon-groen-maxibelmadelon-licht-rood-maxibel

Download Datasheet

pdf-icon-copy-minDatasheet type Madelon

Spare Parts
