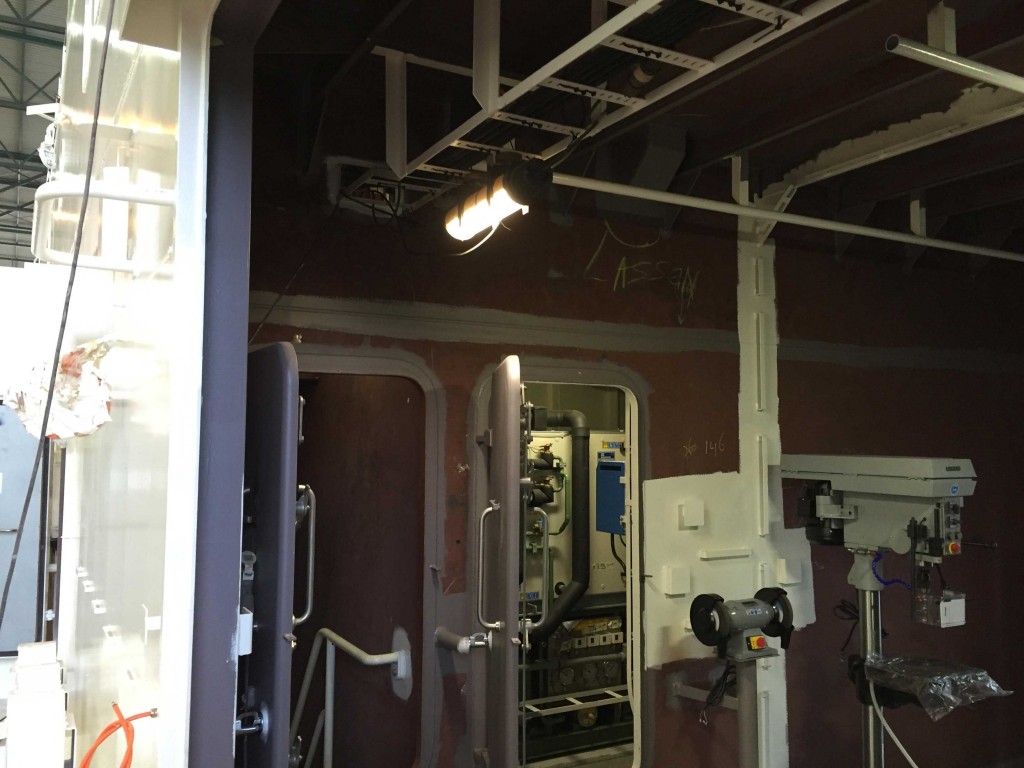

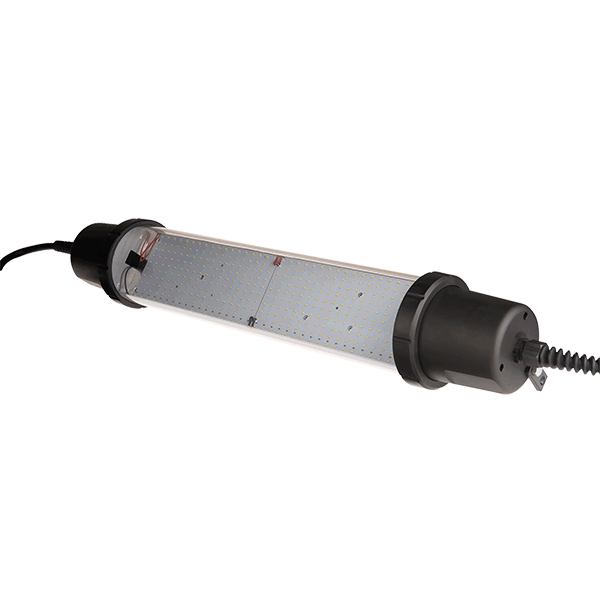

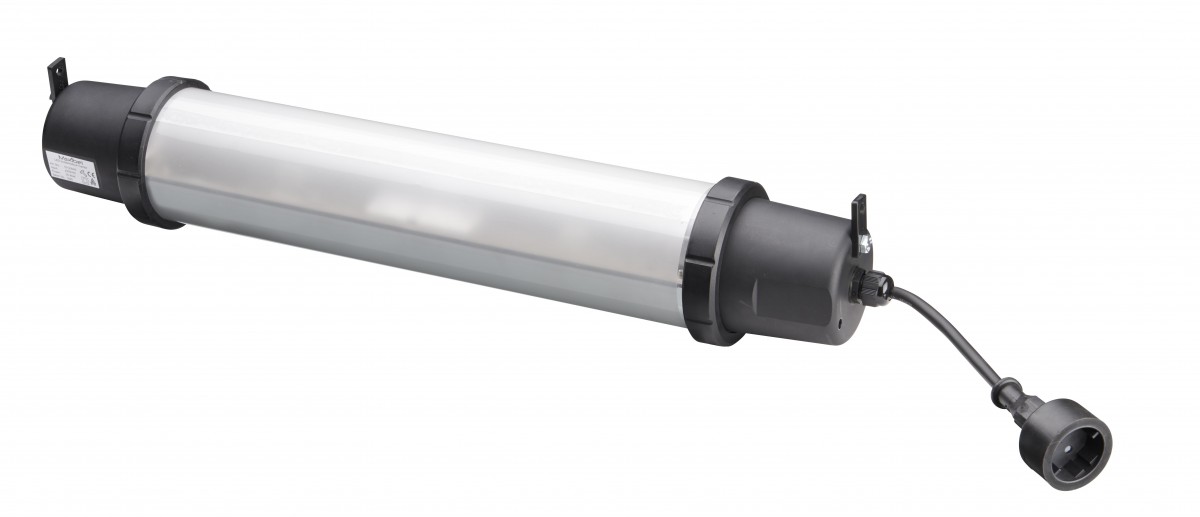

Maxibel LED tube fixture Cardol is designed for use in environments where a high quality is a standard, such as Shipyards, industries and construction sites. During development process input of our users is incorporated in the design. We can therefore guarantee high operational reliability.Maxibel LED tube fixture Cardol is tested by various European institutes and laboratories with excellent results.To mount the fixture there are several options available such as, a magnet clamp or a hanger.The Maxibel LED tube fixture Cardol provides a prefect lighting in the workplace. To protect the polycarbonate tube against damage and contamination there is a protective milky film available to let the light look more inderect or a protective translucent film. This protective film is easy an quick to install without the use of any tools .It is possible to produce the end caps in your business-, or any other color.
| PARAMETERS | |
|---|---|
| •General properties | |
| Lifespan | 50.000 hour |
| Colour temperature | 4.000 k |
| Luminous flux | 24V/42V/48V/110V: 3030 lumen 101 Lumen per Watt |
| 115V /230V :3533 lumen 111 Lumen per Watt | |
| Beam angle | 125° |
| •Electrical properties | |
| Power | 30 Watt |
| Voltage | 24V AC/42V AC/48V AC /110V DC/ 115V AC/230V AC |
| Plug | CEE /Schuko |
| Working environment | -30ºC/50ºC |
| Power Factor | 0.99 |
| CRI_RA | 86 |
| Frequency | 50Hz/60Hz |
| • Product information | article number |
| 24 Volt AC | 10102430 |
| 42 Volt AC | 10104230 |
| 48 Volt AC | 10104830 |
| 110 Volt DC | 101011030 |
| 115 Volt AC | 101011530 |
| 230 Volt AC | 101023030 |
| Product name | LED tube fixture Cardol |
| Protection rate | IP 65/IP44 |
| Weight | 1 Kg |
| Article no. Magnet Clamp | 68286mag |
| Magnet force | 140 N |
| Protective milky film | 990000175 |
| •dimensions | |
| Diameter | 110 mm |
| Length | 700 mm |
Choose your color

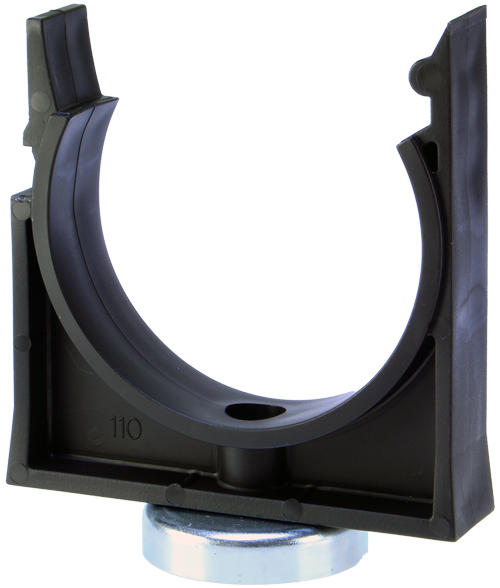

Clamp with magnet

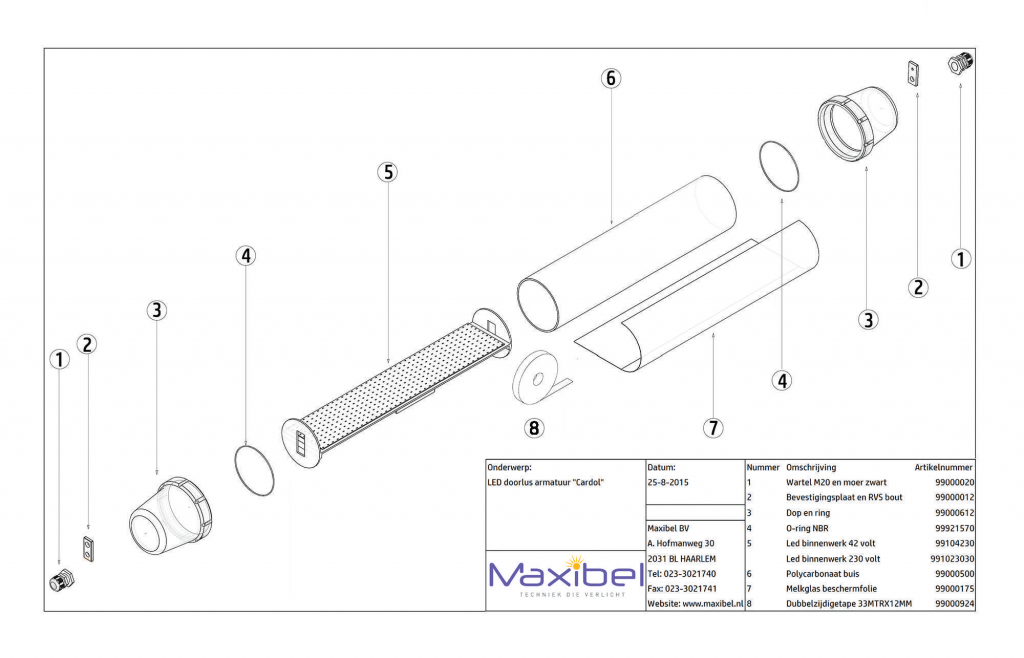

overview spare parts
