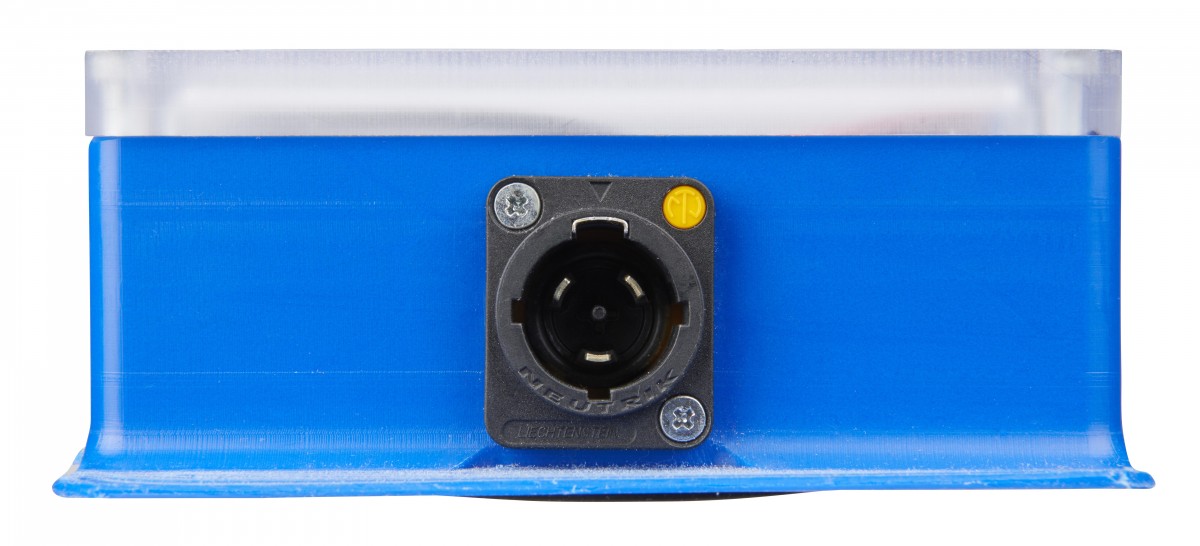

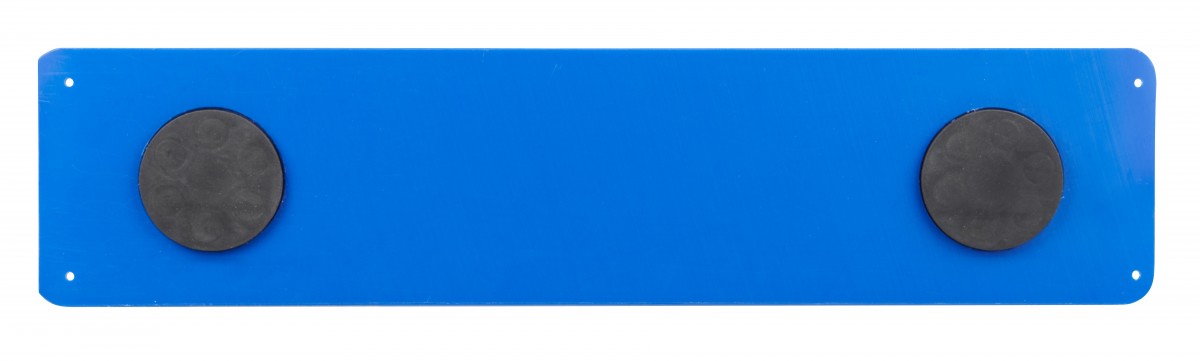

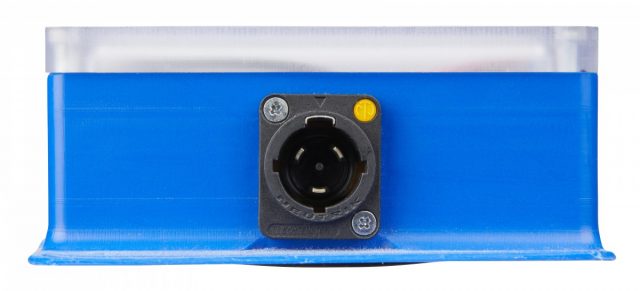

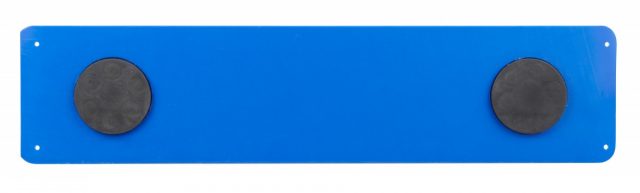

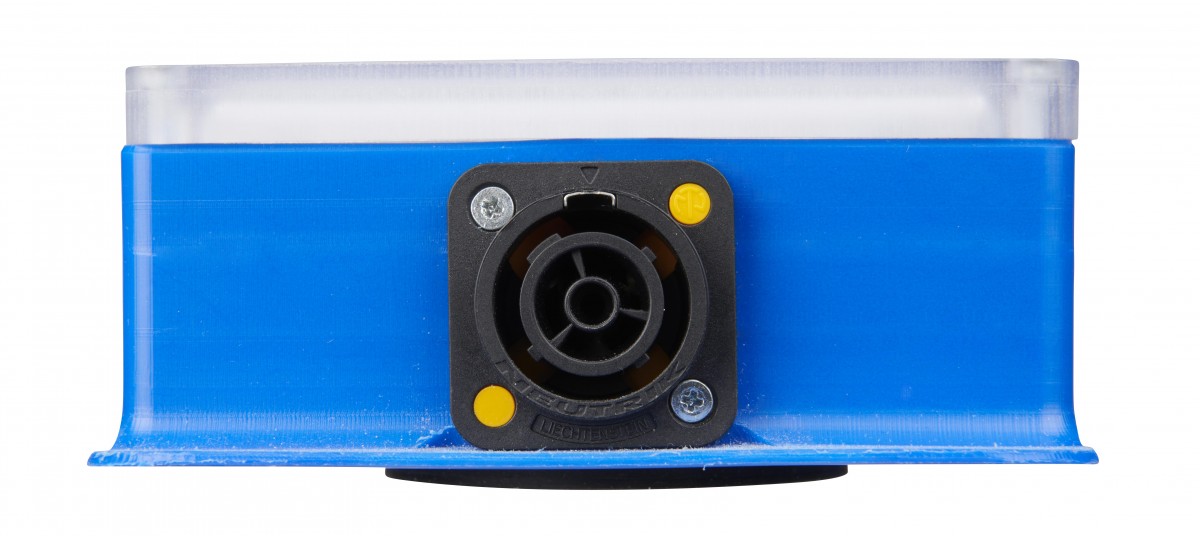

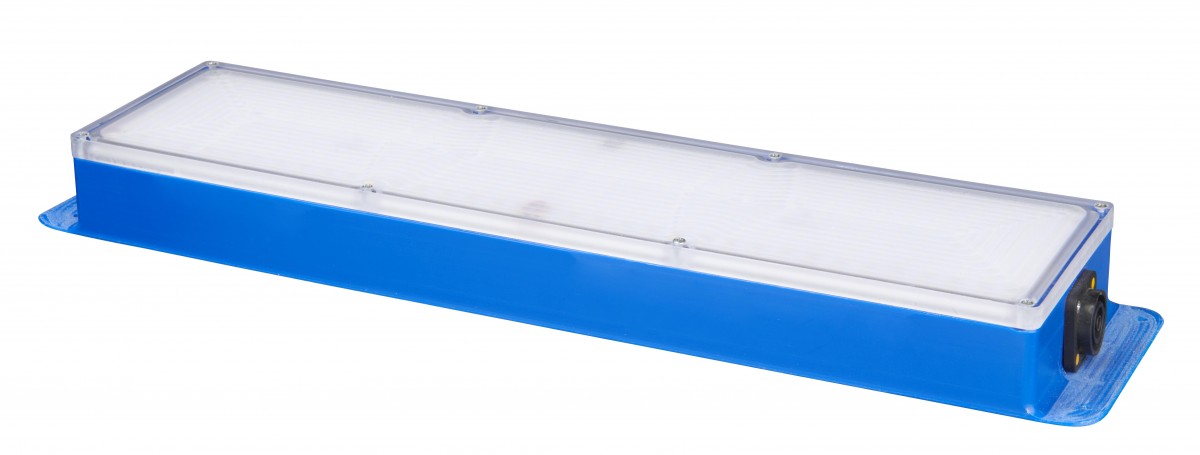

Special made where there is not enough space, this small LED Fixture can be made in every colour and lightens up with 30 Watt . Melniq can be mounted with max. 3 magnets or with tyrap on both ends, we also can produce this fixture with Neutrik material. The polycarbonate cover window is milky opal.
General Details
| PARAMETERS | |
|---|---|
| •General properties | |
| Lifespan | 50.000 hour |
| Colour temperature | 4.000 k |
| Luminous flux | 24V/42V/48V/110V: 3030 lumen |
| 115V /230V :3533 lumen 111 Lumen per Watt | |
| Beam angle | 125° |
| •Electrical properties | |
| Power | 30 Watt |
| Voltage | 24V AC/42V AC/48V AC /110V DC/ 115V AC/230V AC |
| Plug | CEE /Schuko/Neutrik |
| Working environment | -30ºC/50ºC |
| Power Factor | 0.99 |
| CRI_RA | 86 |
| Frequency | 50Hz/60Hz |
| • Product information | |
| Article no. 24 Volt AC | 10402430 |
| Article no. 42 Volt AC | 10404230 |
| Article no. 48 Volt AC | 10404830 |
| Article no. 110 Volt DC | 104011030 |
| Article no. 115 Volt AC | 104011530 |
| Article no. 230 Volt AC | 104023030 |
| Product name | LED tube fixture Melniq |
| Protection rate | IP 65 |
| Weight | 2 Kg |
| Article no. Magnet | 99999963 |
| Magnet force | 140 N |
| •dimensions | |
| Width | 110 mm |
| Hight | 55 mm |
| Length | 700 mm |
DATASHEET
