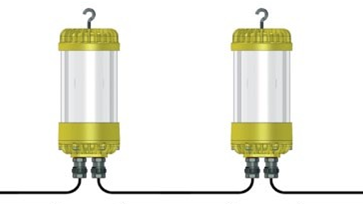

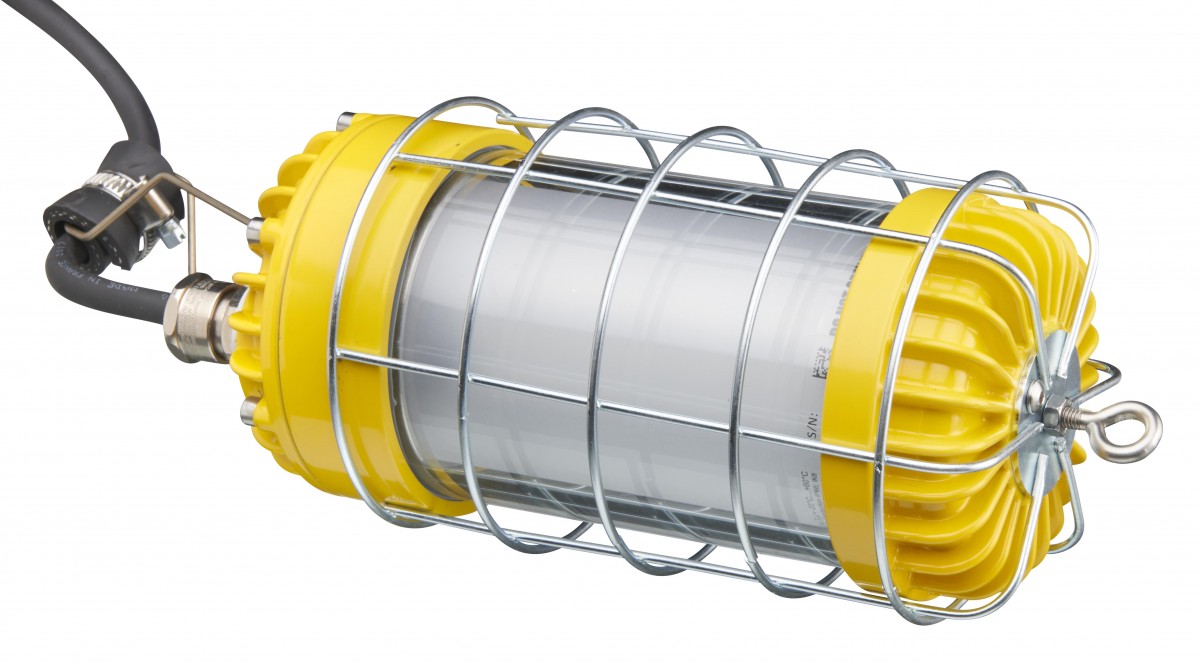

New generation portable ATEX LED worklight for Hazardous area. The latest member in the LED family of worklights, the new ATEX version had been developed to provide even greater technical reliability,and cut product life-cycle costs. The ATEX Pluto is manufactured with a unque eye protection diffuser.

SKU: 10504230
General Details
•General properties
Lifespan 60.000 hour
Colour temperature 5.000 k
Luminous flux 42V: 2500 lumen
230V :3500 lumen
Beam angle 360°
•Electrical properties
Power 25-30 Watt
Voltage 42V AC/230V AC
Plug no plug no cable
Working environment -40ºC/50ºC
Power Factor 0.98
Frequency 50Hz/60Hz
• Product information
Article no. 42 Volt AC 10504230
Article no. 230 Volt AC 105023030
Product name LEDPluto ATEX
Protection rate IP 66  IK8
Weight 2.3 Kg

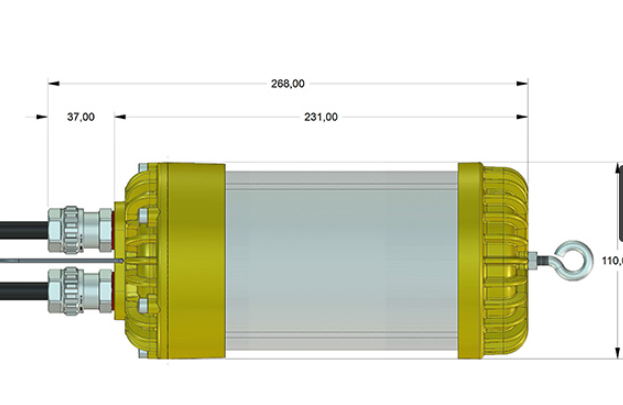

Diameter 110 mm
Length 268 mm

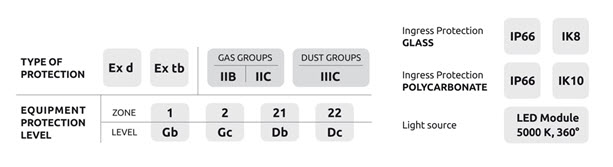

II 2G Ex db IIC T6 Gb; II 2D Ex tb IIIC T85°C Db
